Multiple function gateway support AP controller, SMS authentication, IPsec VPN, cloud for manage gateway
Product Description

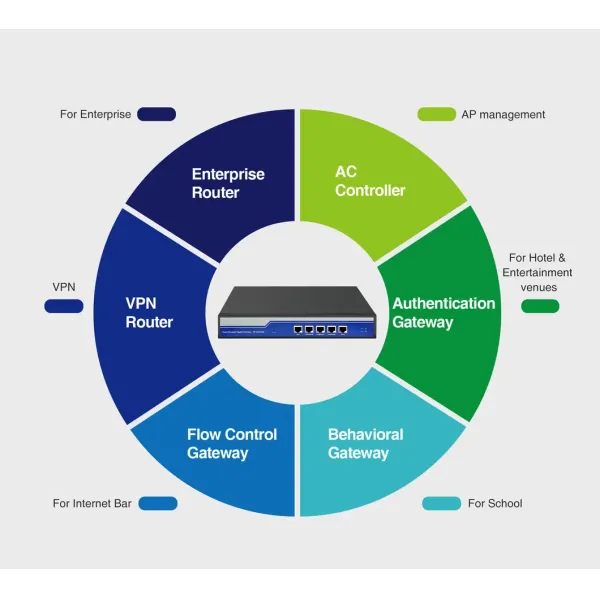

The KS-MR200 is a compact Enterprise Gateway, VPN router, and AC controller equipped with a powerful Mediatek ARM chipset. With its sturdy metal housing and desktop design, it features 5*10/100/1000Mbps RJ45 ports, making it an ideal solution for home, office, or restaurant settings where reliable Gigabit Ethernet is needed.
As a VPN router, the KS-MR200 supports both VPN client and VPN server functionalities, including PPTP, L2TP, IPsec, and OpenVPN protocols. Additionally, it offers SD-WAN capabilities, multiple solutions of remote management and control for chain stores.
Functioning as an AC controller, the KS-MR200 can automatically discover wireless access points (APs) and manage them centrally in groups, delivering fast and efficient network administration.
Main Features:
SMB Enterprise Gateway: Delivering High-Speed, Secure, and Superior Ethernet Access for Businesses
A. Multi-WAN and Multi-Session Support: Support bandwidth stacking after enable the multiple network dial up from the same or different ISPs, optimizing network connectivity and enhancing business continuity.
B. Powerful VLAN Features: Support port-based VLAN and Tag VLAN, ensures efficient data isolation within the enterprise, effectively safeguarding network security.
C. Intelligent Policy Routing: Flexibly configure routing policies based on demands, enhancing overall network efficiency.
D. Efficient Load Balancing: Ensure fair distribution of network traffic to improve user experience.
E. Port Aggregation: Supports port aggregation to further enhance bandwidth utilization.
F. Diverse QoS Modes: Flexibly configure Quality of Service based on bandwidth, application priority, IP/domain and protocol to ensure critical applications are prioritized
G. Comprehensive Security Protections: Offers robust security features including access control, ARP defense, MAC filtering, connection limits, and DDoS protection, providing continuous protection for your network.
Comprehensive VPN Support
Featuring both VPN server and client functionalities, it supports multiple protocols including IPsec, PPTP, L2TP, and OpenVPN, ensuring secure remote access for users to the corporate network while effectively protecting privacy and data security.
Supports SD-WAN (Software-Defined Wide Area Network) to Drive Digital Transformation for Enterprises
With centralized management and flexible deployment through SD-WAN, seamlessly overcome geographic limitations, enhance network performance, reduce operational costs, and strengthen business continuity. This software-driven solution accelerates the digital transformation process for enterprises, making their networks more efficient and agile.
Diverse Authentication Methods to Meet Your Varied Needs
Supports Portal, PPPoE, Radius, and SMS authentication, ensuring secure network access while effectively showcasing advertisements to enhance brand influence, perfectly adapting to various scenario requirements!
Rapid and Centralized Configuration of Wireless APs for Large-Scale Coverage
Supports automatic detection and manage 200PCS wireless APs. Simplify parameter configuration through group management, easy to deploy the large-scale wireless coverage-a one-stop wireless network solution!
Cloud Remote Management, Easily Control Your Network
Support cloud access and remote management through various methods, including device MAC or bound accounts,support device anomaly alert, wherever you are, easily inspect your devices, save time and costs, and monitor network status in real-time, ensuring efficient and smooth management!
Comprehensive Network Fault Diagnosis and Smart Alerts
Supports multiple network fault diagnosis features, provides network wake-up options, and includes an anomaly alert mechanism to promptly detect and address network issues, ensuring stable and efficient network operation.
Enhanced Additional Features for Greater Network Flexibility
Supports port mapping, UPnP, DMZ, NAT, and NAT fast forwarding, along with various other capabilities such as port mirroring, providing greater flexibility and convenience for your network configuration
Detailed Photos
Product Parameters
| Model No. |
KS-MR200 |
| CPU |
MTK7981+MTK7531+RTL8221B |
| DDR3 |
512MB |
| Flash |
128M |
| Interface |
5 × 10/100/1000Mbps RJ45 ports, Software defined WAN/LAN port |
| LED Indicator |
Run, Power, 5*RJ45 ports LED indicator |
| Power |
AC:100-240V,50HZ |
| Size |
284mm*178mm*44mm |
| Working Temperature |
-20ºC~50ºC |
| Storage Temperature |
-40ºC ~ 70ºC |
| Working Humidity |
5% ~ 90% RH (No condensation); |
| Firmware functions |
| Operation Mode |
Gateway, Gateway+AP controller, AP controller |
| Maximum Users |
200 under Gateway and Gateway + AP mode |
| Maximum APs can be managed |
200PCS wireless AP can be managed under gateway+AP controller;
300PCS wireless AP can be managed under AP controller |
| WAN |
Support Multi WAN bandwidth stacking: PPPoE, DHCP, static ip |
| Support one line multi-dial bandwidth stacking |
| Support WAN grouping to implementing batch WAN settings |
| IPv4 & IPv6 |
| 200 network users can be connected |
| LAN |
Multiple LAN ports |
| Support LAN VLAN, to achieve data isolation function |
| Support DNS proxy |
| Policy Routing |
Policy routing |
| Load balance |
| Line speed measurement, PING detection |
| Support recording logs of policy routing rules and the working status of WAN port lines |
| Port Aggregation |
Manual aggregation and LACP modes |
| MAC,IP+port, MAC+IP port aggregation |
| Routing |
Device status, network status, user login records, system logging function |
| QoS function: Based on bandwidth, business priority level, IP/domain name and protocol to limit traffic |
| Multiple security protections: support access control, ARP defense, MAC filtering, connection limit, DDoS defense and other functions |
| Support behavior management functions based on time groups, IP address groups, domain names, and behavior recognition |
| Supports VPN server and VPN client, supports PPTP, L2TP, IPsec, OpenVPN and other protocols |
| Support port mapping |
| Support UPNP |
| Support DMZ |
| Support NAT |
| Support DNS |
| Support DDNS |
| Support port mirroring |
| Support NAT fast forwarding |
| Wake-on-LAN |
| Support network fault diagnosis and alarm push |
| Authentication |
Support WEB Auth |
| Support PPPoE Auth |
| Support Radius Auth |
| Support SMS Auth |
| Support authenticated user management |
| Hot Standby |
Set relevant parameters for HA master/slave backup, link monitoring, and interface monitoring to achieve load balancing and parameter/line backup functions |
| AP Management |
AP list checking |
| Wireless parameter template settings |
| AP group management |
| White/Black name list management |
| AP Bulk firmware upgrade |
| DHCP defense |
| AP System Log |
| Fault Diagnosis |
Support PING detection, TraceRoute, Packet capture diagnosis and other functions |
| System Management |
Remote Maintenance |
| Local backup, import, scheduled backup, factory settings, device restart, scheduled restart, local upgrade, online upgrade, etc |
| System time |
| Cloud Remote Management |
SD-WAN |
| Scene topology generation and management |
| Scene grouping and management |
| Equipment management and grouping |
| Equipment abnormality alarm |
| Technical Support Center |
| Packing List |
KS-MR200 *1 |
| Power cable *1 |
| User Manual *1 |
| LAN cable *1 |
Packaging & Shipping
Carton box: 46*37.5*52cm;
10PCS/CTN,
20KGS/CTN
After Sales Service
2 years warranty
